Illuminated Street Signs

LeoLuxx Back-Lit Series Retrofit Street Name Signs

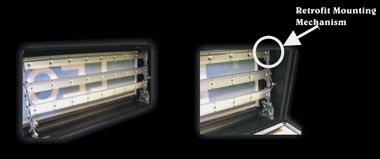

Weizhou's new LED Street Sign Retrofit System incorporates an advanced solid-state LED "Light Engine" that provides maintenance free operation with significant labor & energy savings. The LED "Light Engine" & user friendly retro assembly easily replaces conventional fluorescent light fixtures & their heavy ballasts eliminating bulb replacement.
UL Listed components designed for installation into a NEMA type enclosure. Patents Pending.

Leotek Model Number Part Description Beam Color LED Type Power (Max) Input Voltage Power Supply Max Wattage
SSR-S36-W1 3Ft Single-Sided LED Retrofit System;
- Retrofit Stand w/Light Engine Assembly Kit
- Interconnect Wiring
- 120 vac/12 vdc Power Supply
White InGaN 24 watts 120 vac 100 watt
SSR-D36-W1 3Ft Double-Sided LED Retrofit System;
- Retrofit Stand w/Light Engine Assembly Kit
- Interconnect Wiring
- 120 vac/12 vdc Power Supply
White InGaN 48 watts 120 vac 100 watt
SSR-S46-W1 4Ft Single-Sided LED Retrofit System;
- Retrofit Stand w/Light Engine Assembly Kit
- Interconnect Wiring
- 120 vac/12 vdc Power Supply
White InGaN 32 watts 120/12 100 watt
SSR-S46-W1 4Ft Single-Sided LED Retrofit System;
- Retrofit Stand w/Light Engine Assembly Kit
- Interconnect Wiring
- 120 vac/12 vdc Power Supply
White InGaN 64 watts 120 vac 100 watt
LES-36W1-L1 3Ft Leoluxx LED Strip White InGaN 8 w 12 vdc N/A
LES-46W1-L1 4Ft Leoluxx LED Strip White InGaN 10.7 w 12 vdc N/A
LEA-PCW Power Interconnect Wire Kit- connects up to 6 light engine strips (3 & 4ft. modules) N/A N/A N/A N/A N/A
CLP-100A Power Supply (120 vac/12vdc) N/A N/A 100 watts 120 vac 100 watts
CLP-200A Power Supply (120 vac/12vdc) N/A N/A 200 watts 120 vac 200 watts

¡@
