Alternator

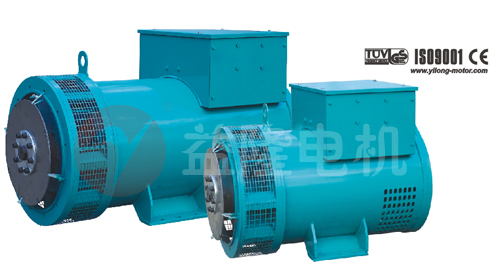

TFWL SERIES THREE-PHASE A.C SYNCHRONOUS BRUSHLESS GENERATOR
¡@


TFWL Series three-phase A.C. Synchronous brushless generators absorb international advanced technology of manufacturing electric machinery, It's the new-type designed and developed A.C. Synchronous generator by ourselves.
This series generators accord with most of international standards. and also accord with the following standards;
International Electrician Command Standatd IEC34

INternational Standardization Organization Command Standard ISO8528
NEMA Standard
The products have outstanding performance, reliable quality,convenient maintenance. The generator and the engine can be connected with steel or flexible material.As a small-type generating station. it can be used in factories , buildings and worksites for lightening and electric power source.


Technical Date


Model

Rated Power
(KW/KVA)

Rated Volt.
(V)

Rated Curr. (A)

Rated P.F.

Rated Speed (r/min)

Steady Volt.
Regulation

TFWL-10

10/12.5

400

18.1

0.8

1500

+/-1

TFWL-12

12/15

400

21.6

0.8

1500

+/-1

TFWL-16

16/20

400

28.8

0.8

1500

+/-1

TFWL-20

20/25

400

36.1

0.8

1500

+/-1

TFWL-24

24/30

400

43.2

0.8

1500

+/-1

TFWL-30

30/37.5

400

54.1

0.8

1500

+/-1

TFWL-40

40/50

400

72.2

0.8

1500

+/-1

TFWL-50

50/62.5

400

90.2

0.8

1500

+/-1

TFWL-64

64/80

400

115.6

0.8

1500

+/-1

TFWL-75

75/93.75

400

135.5

0.8

1500

+/-1

TFWL-90

90/112.5

400

162.6

0.8

1500

+/-1

TFWL-100

100/125

400

180.4

0.8

1500

+/-1

TFWL-120

120/150

400

216.8

0.8

1500

+/-1

TFWL-150

150/187.5

400

271

0.8

1500

+/-1

TFWL-160

160/200

400

288.6

0.8

1500

+/-1

TFWL-180

180/225

400

324.7

0.8

1500

+/-1

TFWL-200

200/250

400

360.8

0.8

1500

+/-1

TFWL-220

220/275

400

396.8

0.8

1500

+/-1

TFWL-250

250/312.5

400

451

0.8

1500

+/-1

TFWL-280

280/350

400

505

0.8

1500

+/-1

TFWL-300

300/375

400

541

0.8

1500

+/-1

TFWL-320

320/400

400

577

0.8

1500

+/-1

TFWL-350

350/437.5

400

631.5

0.8

1500

+/-1

TFWL-400

400/500

400

721.7

0.8

1500

+/-1

TFWL-450

450/562.5

400

813

0.8

1500

+/-1

TFWL-500

500/625

400

902

0.8

1500

+/-1

TFWL-600

600/750

400

1084

0.8

1500

+/-1

TFWL-720

720/800

400

1300

0.8

1500

+/-1

TFWL-800

800/1000

400

1445

0.8

1500

+/-1




¡@
