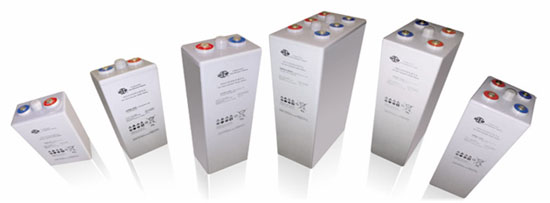

OPzV Series Battery

The OPzV series reach the standard DIN40742. IEC60896-21, IEC60896-22, YD/T1360


Features of Performance application: Application:
  • Designed service life of 20 years
  • High cycle service life
  • Beter temperature resistance performance
  • Excellent deep cycle performance
  • Low self discharge rate
  • Better charge acceptcbility
  • Gelled electrolyte, no flow,no leakage
  • Modular and personified installation design
  • Solar energy, wind system
  • Electri power
  • UPS system
  • Ship,maritime affairs
  • Medical instruments
  • Emergency Light
  • Machine in high environmental protection

Specification
Model No. Normal Normal Dimensions¡]mm¡^ Battery Terminal
Voltage Capacity weight(app.)
(V) (AH) Length Width Height Total Height ¡Ó5%(Kg)
PGV2200 2 200 103 206 354 390 18.5 M10
PGV2250 2 250 124 206 354 390 22
PGV2300 2 300 145 206 354 390 24.5
PGV2350 2 350 124 206 470 502 29
PGV2420 2 420 145 206 470 502 33.5
PGV2500 2 500 165 206 470 502 39
PGV2600 2 600 145 206 645 680 45.5
PGV2770 2 770 252 210 470 505 56.5
PGV2800 2 800 190 210 645 680 59.5
PGV21000 2 1000 232 210 645 680 73.5
PGV21200 2 1200 275 210 645 680 87.5
PGV21500 2 1500 275 210 795 830 103.5
PGV22000 2 2000 398 212 772 805 145.5
PGV22500 2 2500 486 212 772 805 185.5
PGV23000 2 3000 575 212 772 805 220.5

¡@
