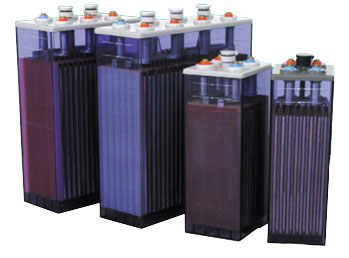

OPzS Series Battery

The OPzS series reach the standard DIN40736. IEC60896-11,GB/T13337.1

Application:
  • Solar and wind power system
  • Electric power, nuclear power
  • Telecommunications system
  • UPS system
  • Marine

Features of performance application:


Specification
Model NO. Normal Normal Dimensions¡]mm¡^ Battery weight(app.)(Kg)
Voltage Capacity
(V) (AH) Length Width Height Total Heght Dry Wet
PGS2-200 2 200 103 206 354 409 13.5 17.5
PGS2-250 2 250 124 206 354 409 16 21
PGS2-300 2 300 145 206 354 409 17.5 23.5
PGS2-350 2 350 124 206 470 525 21 28
PGS2-420 2 420 145 206 470 525 24 32.5
PGS2-500 2 500 166 206 470 525 28.5 38.5
PGS2-600 2 600 145 206 645 700 32.5 44.5
PGS2-800 2 800 191 210 645 700 42.5 58.5
PGS2-1000 2 1000 233 210 645 700 52 72
PGS2-1200 2 1200 275 210 645 700 62 86
PGS2-1500 2 1500 275 210 795 850 71.5 101.5
PGS2-2000 2 2000 399 214 771 826 98.5 140.5
PGS2-2500 2 2500 487 212 771 826 131.5 184.5
PGS2-3000 2 3000 576 212 771 826 155.5 218.5
PGS12-50 12 50 272 205 335 390 26 37.5
PGS12-100 12 100 272 205 335 390 39.5 48.5
PGS12-150 12 150 380 205 335 390 54.5 68.5
PGS6-200 6 200 272 205 335 390 35.5 46
PGS6-250 6 250 380 205 335 390 45.5 59.5
PGS6-300 6 300 380 205 335 390 51.5 65.5

¡@
