Front Terminal Series
Battery
¡@
Specification
Model No. |
Nominal
Voltage
(V) |
Nominal
Capacity
(AH) |
Dimensions(mm) |
Dimensions(in) |
Weight
(Approx.) |
Terminal |
Length |
Width |
Height |
Overall
Height |
Length |
Width |
Height |
Overall
Height |
Kg |
Ib |
FB12-50 |
12 |
50 |
277 |
106 |
221 |
221 |
10.91 |
4.17 |
8.70 |
8.70 |
17.00 |
37.48 |
F9 |
FB12-75 |
12 |
75 |
562 |
114 |
189 |
189 |
22.13 |
4.49 |
7.44 |
7.44 |
27.00 |
59.52 |
F9 |
FB12-100 |
12 |
100 |
506 |
110 |
224 |
239 |
19.92 |
4.33 |
8.82 |
9.41 |
32.50 |
71.65 |
F9 |
FB12-105 |
12 |
105 |
395 |
110 |
286 |
286 |
15.55 |
4.33 |
11.26 |
11.26 |
35.00 |
77.16 |
F9 |
FB12-125 |
12 |
125 |
436 |
108 |
317 |
317 |
17.17 |
4.25 |
12.48 |
12.48 |
40.50 |
89.29 |
F9 |
FB12-150 |
12 |
150 |
551 |
110 |
287 |
287 |
21.69 |
4.33 |
11.30 |
11.30 |
50.00 |
110.23 |
F11 |
FB12-180 |
12 |
180 |
546 |
125 |
317 |
323 |
21.50 |
4.92 |
12.48 |
12.72 |
59.00 |
130.07 |
F11 |
Features:
Front Terminal, Eurobat
specification Long life
Peakpower¡¦s battery is designed for 12 years by the
Euro battery technology standard, heavy-duty plates with
high density and deep-cycle oxide active material,
advanced grid alloy for deep cycle, provide quick
recharge ability and superior deep-cycle and float
performance in the most demanding application
Gelled electrolyte by the high-tech gelled electrolyte,
gel battery is completely leakproof and spillproof for
easy installation in virtually any position even under
water. So it more keep the battery¡¦s quality!
Sealed Maintenance Free
Peakpower's unique design and sealing technique
guarantees that no electrolyte leakage can occur from
the terminals or case of any Powergor Battery Tech. co.,
ltd.. The sealed system eliminates electrolyte checking
and water addition.

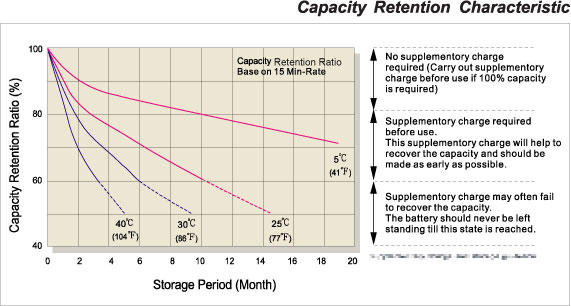

Long Shelf life and storage
Special vents, high purity lead and grid alloys assure a
low self-discharge rate and consequently a long shelf
life. Lower storage temperatures enhance shelf life
characteristic even further.
High quality and firm
reliability
Peakpower batteries can keep the stable and reliable
capacity. It also can withstand overcharge, over
discharge, vibration and shock. It is also capable of
extended storage

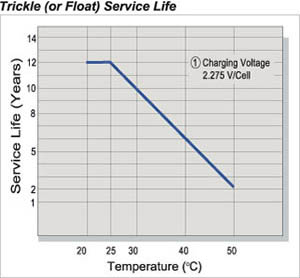

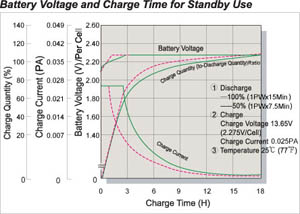

Standby use
The float service life, or life expectancy under
continuous float charge at 2.25vpc at 20 deg is 5 years
for batteries up to 26ah and 10 years for batteries with
capacities greater than 30ah.

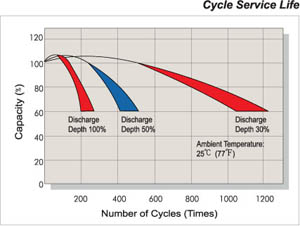

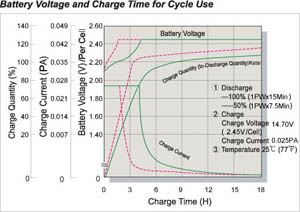

Cyclic use
The number of charge/discharge cycles depends on the
capacity taken from the battery (a function of discharge
rate and depth of discharge) operating temperature and
charging method.
Easy Installation
Batteries are easily installed in a dry and vented
place; meanwhile it can be put by the rack to use
safely.
Compact design
Peakpower batteries utilize state of the art design,
highest grade materials, and a carefully controlled
plate making process to provide excellent output per
cell.
Designed-in reliability
Cutting edge manufacturing and process control combined
with strict quality assurance procedures guarantee
consistent and dependable performance.
Low Self-Discharge
Because of the use of Lead Calcium grids alloy,
Peakpower VRLA battery can be stored for long periods of
time without recharge.

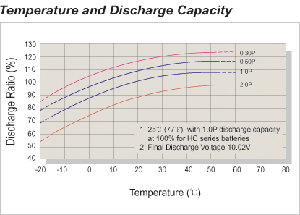

Wide operating temperature
range
Charge: -15 to 50¢J
Discharge: -15 to 60¢J
Storage: -20 to +50 (in fully charged condition) |
|
Applications: |
|
- Telecommunications
- UPS system
- Solar system
- Emergency Lighting
- Golf cars and buggies
|
- Fire and Security
- Boats/Marine/Navigational Aids
- Commercial deep cycle applications
- Electrical Characteristics
|
|
|
